Model Attributes:

Jackson-Bell - Model 5

Introduced 1928

Cabinet Style:
Box/Chest
Circuit:
TRF with optional loop antenna
Number of Tubes:
5
Tube Complement:
Two chassis versions. See note below.
Inage of Pandora chest radio with lid open
One of two known bells used on the Model 5
OVERVIEW
General Information:

This is the second known radio produced by Jackson-Bell. It has a large heavy bell on the front. The built-in speaker was uncommon for the day. Two versions with different tube compliments exist.

The Tube Compliment:

Version 1 - likely 01A, 01A, 27, 112A, B
Version 2 - 26, 27, 26, 112 or 171A, 80

Related Documents:

Select the item you are interested in below.
The link will open in a new page. Close that window to return here.

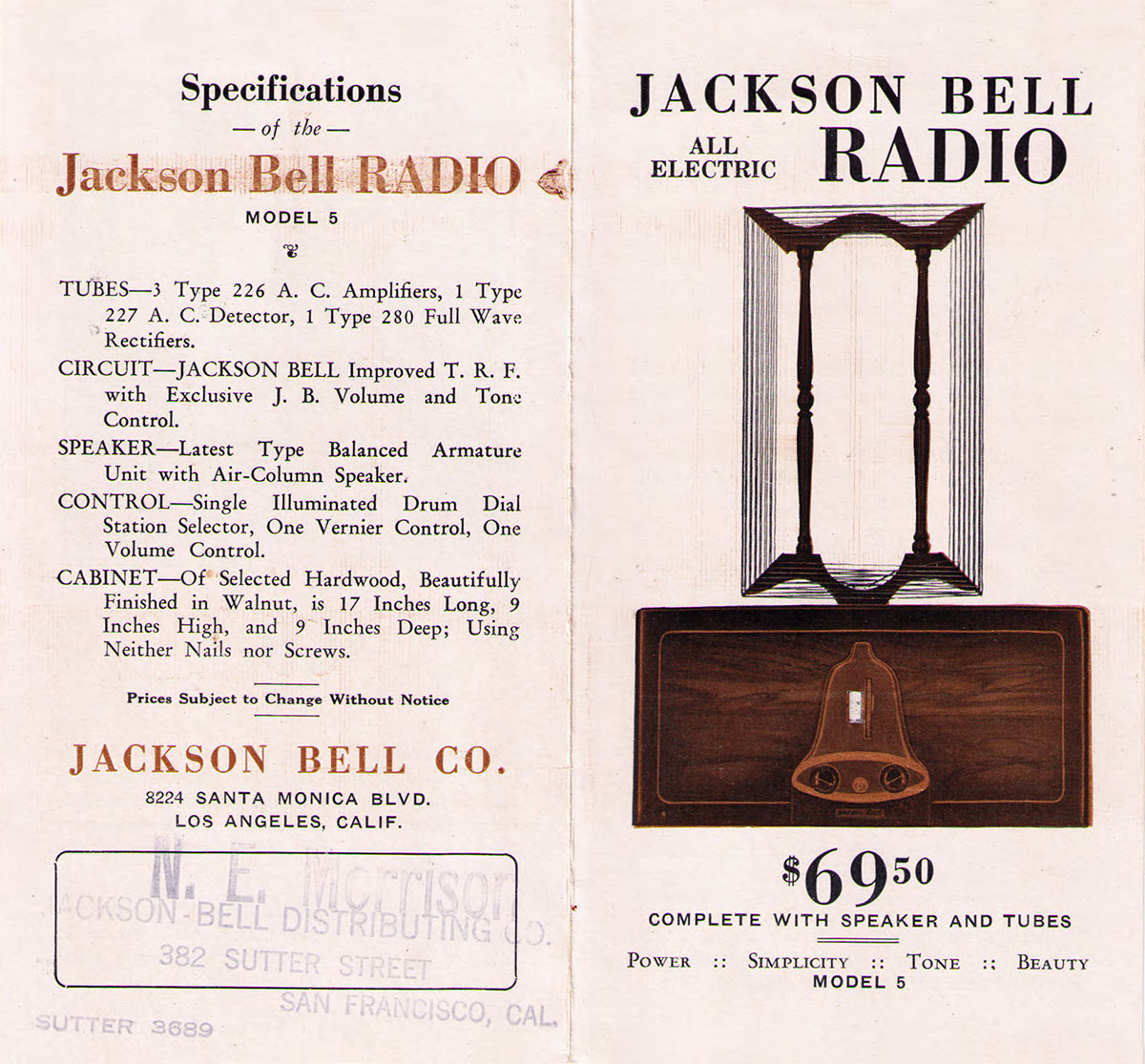

Model 5 Version Comparison with SchematicsModel 5 BrochureRichard Gray's Personal Model 5A DossierRETURN TO RADIOS SELECTION PAGE
